Planeveyor Spring cushion embedded type
PV-C / PV-CFseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
It is Planeveyor that can receive the work load with the built-in spring by the entire Planeveyor. Therefore, this product aims to save labor during transporting heavy loads.
*For stainless steel products, please contact us.
Press molded product

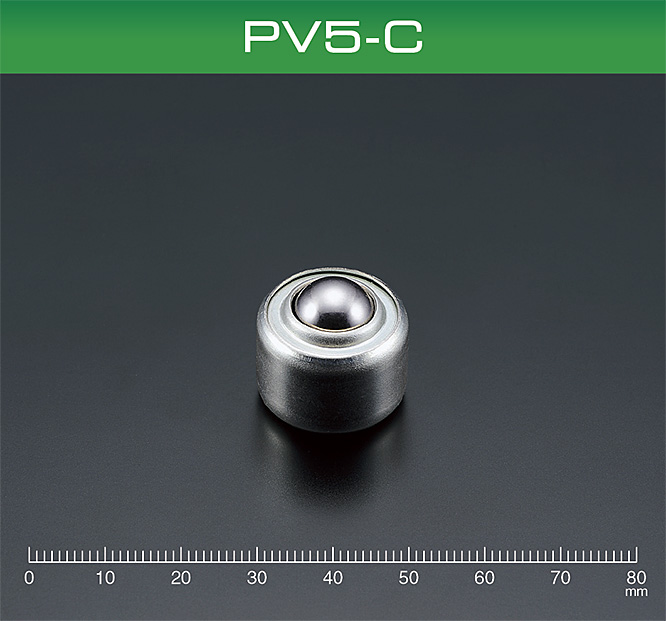

PV5-C

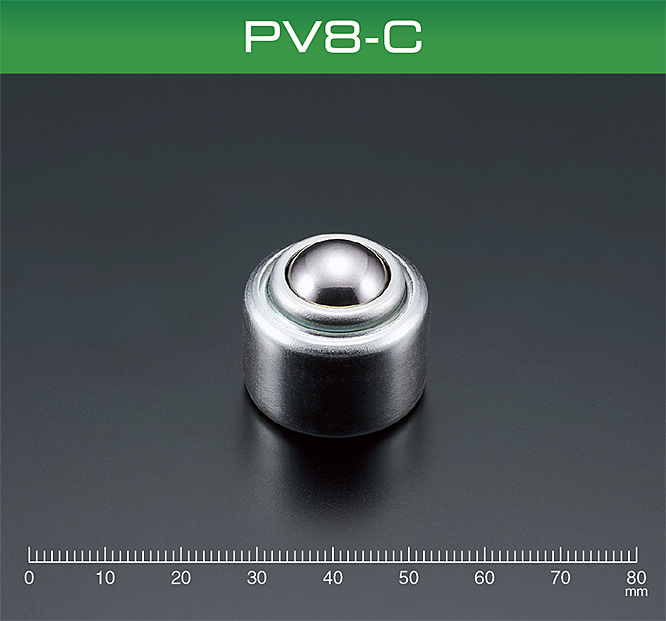

PV8-C
| Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | 3D |
|---|---|---|---|---|---|---|---|---|---|
| PV5-C | 49N (5kgf) | 68N (7kgf) | 18g | Upward | STEEL | STEEL | SS | SS |  |
| PV8-C | 78N (8kgf) | 107N (11kgf) | 40g | Upward | STEEL | STEEL | SS | SS | |
Cutting product
After loading the mold, move it front to back, left and right on Planeveyor to make a position for it. When the upper mold is attached to the ram and the lower mold is clamped, Planeveyor will sink by the clamping force, the lower mold and the bolster will be in close contact.

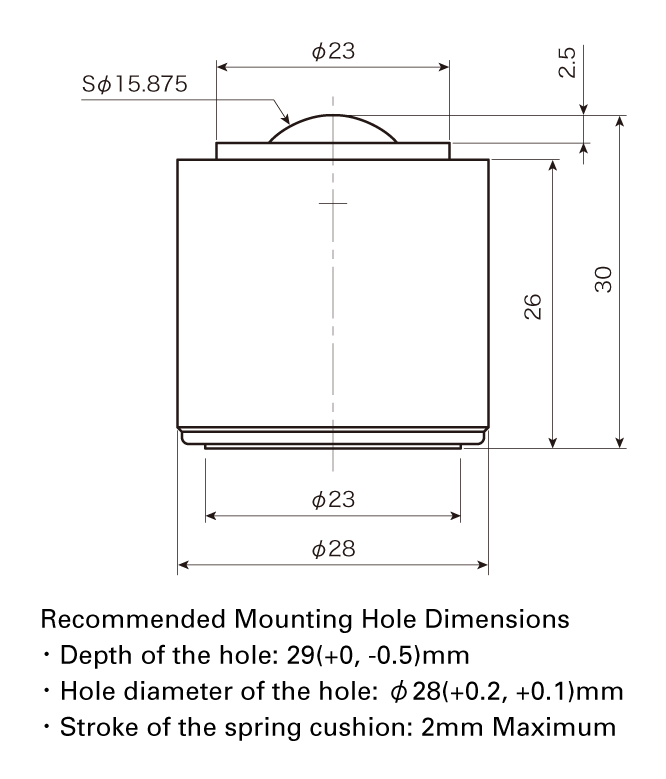

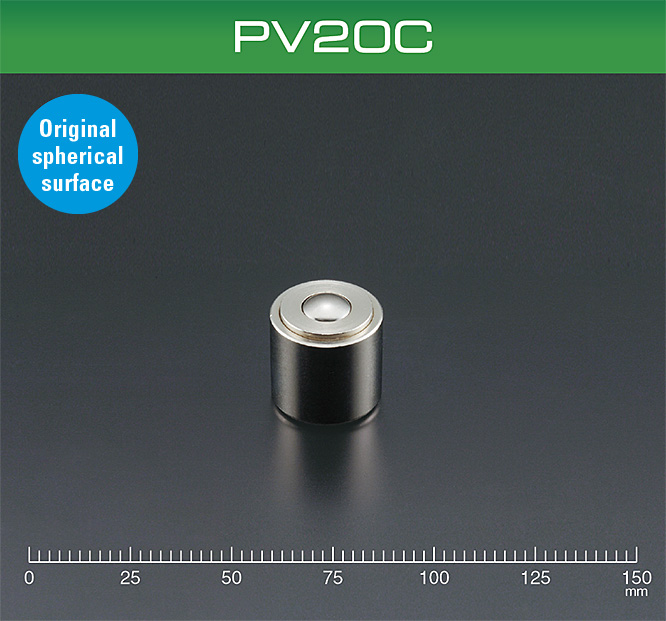

PV20C
| Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV20C | 196N (20kgf) | 284N (29kgf) | 95g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |

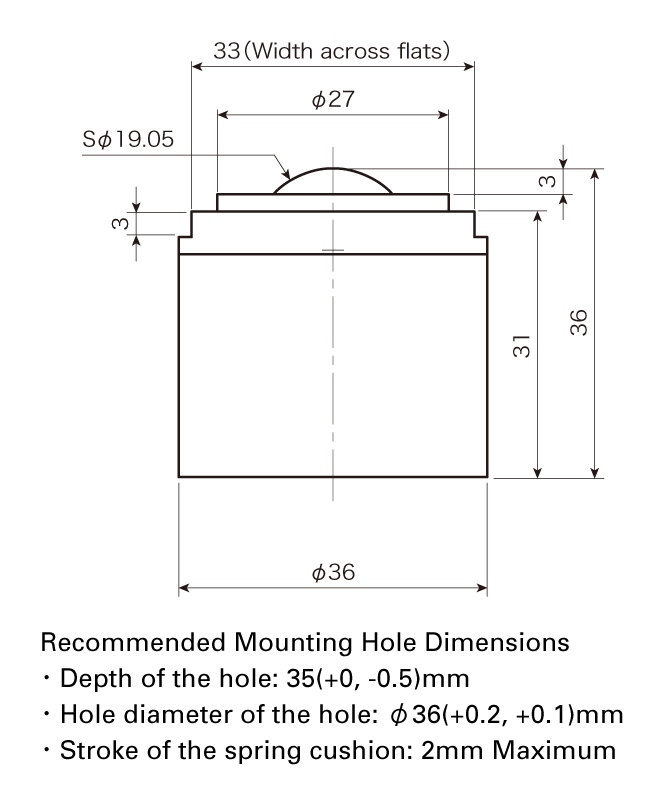

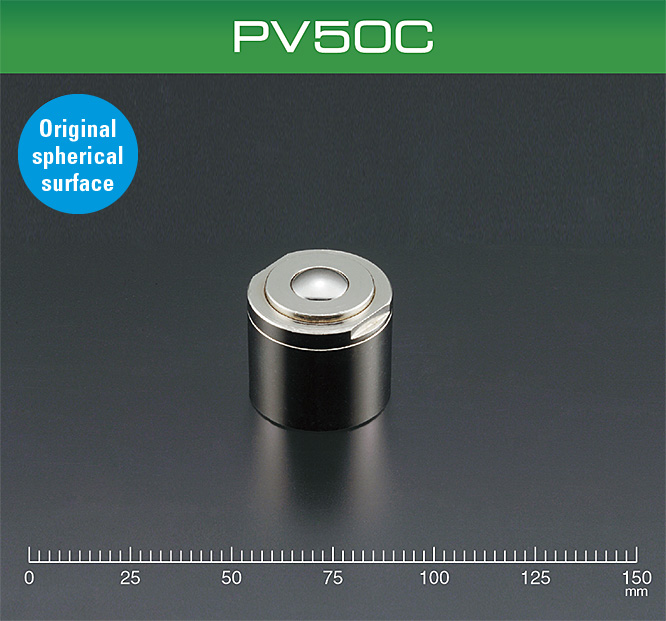

PV50C
| Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV50C | 490N (50kgf) | 686N (70kgf) | 187g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |

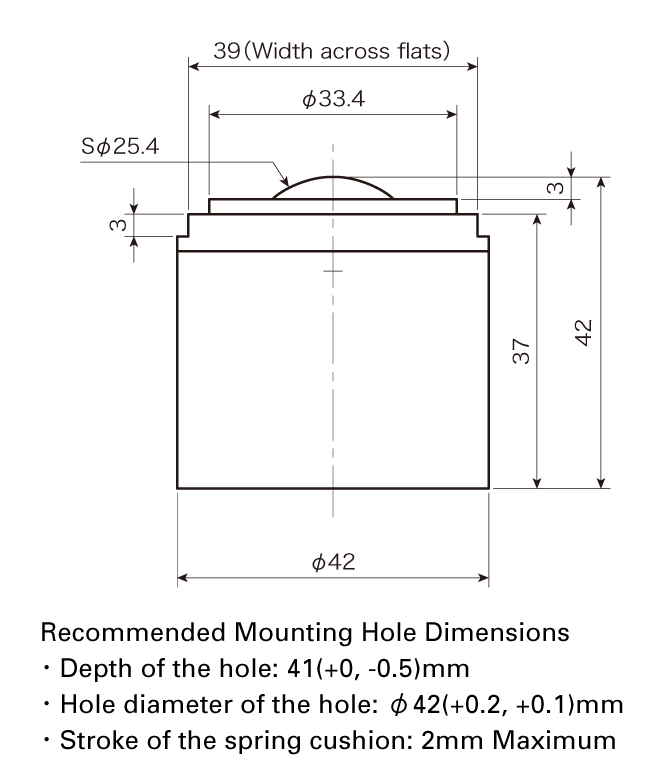

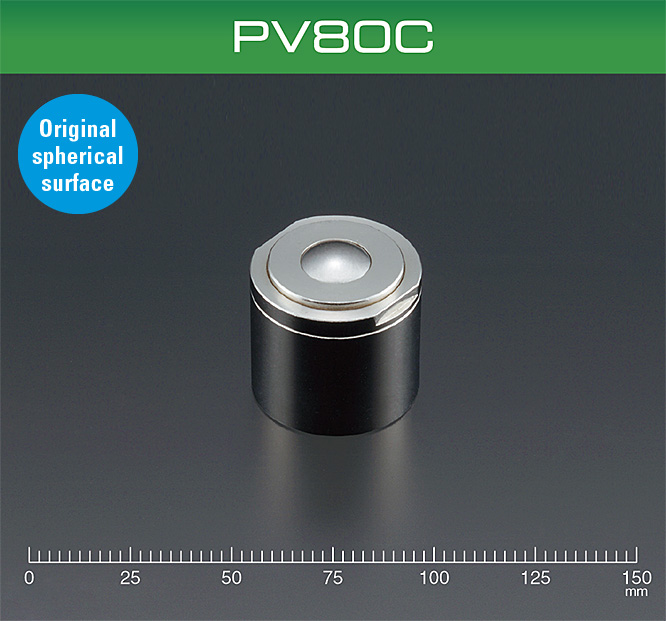

PV80C
| Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV80C | 784N (80kgf) | 1,038N (106kgf) | 314g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |

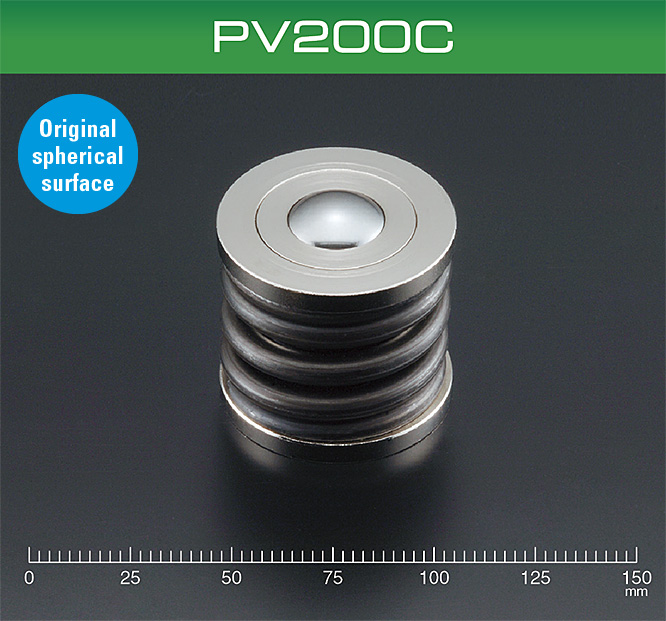

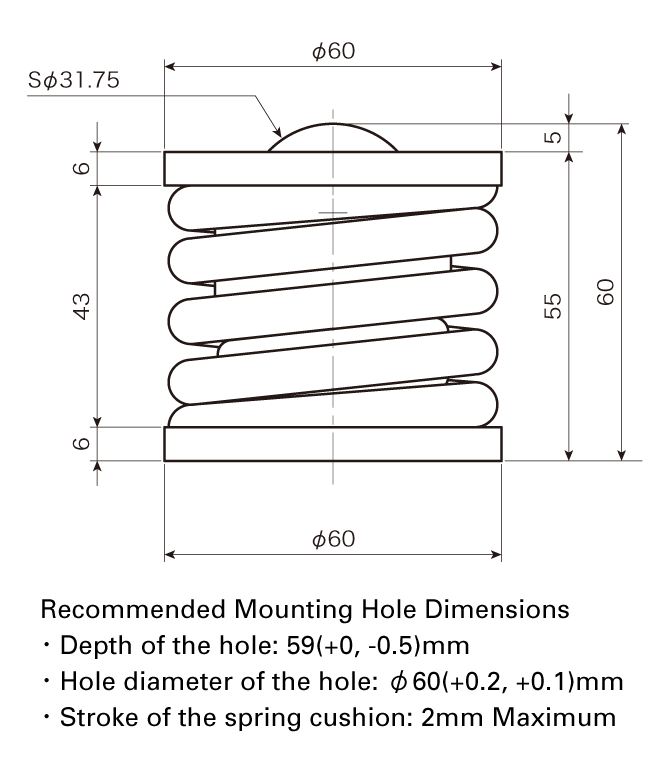

PV200C
| Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV200C | 1,960N (200kgf) | 2,401N (245kgf) | 860g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |

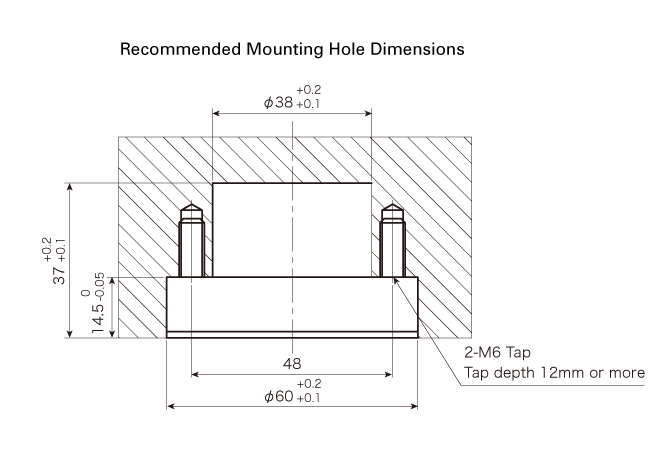

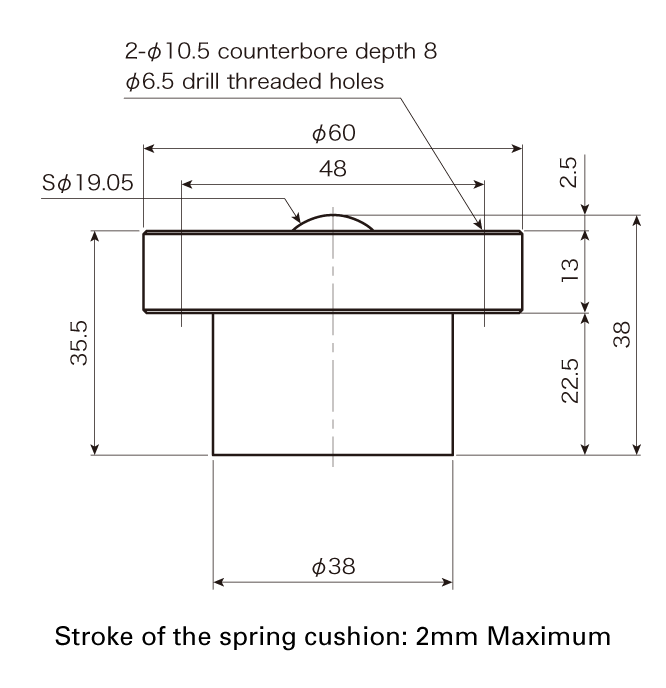

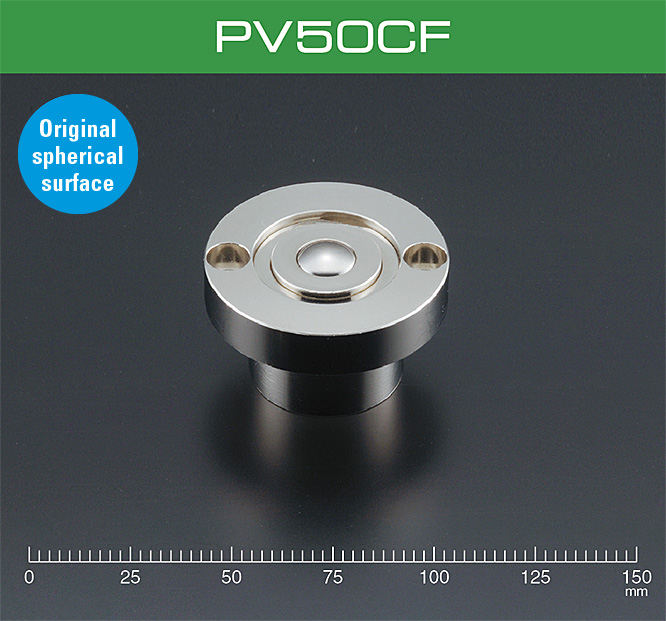

PV50CF
| Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV50CF | 490N (50kgf) | 686N (70kgf) | 385g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |
Planeveyor Spring type for cushion pin holes
PV-CAMseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
It is spring type Planeveyor for die positioning corresponding to bolster cushion pin holes of the press machine.
There are two basic sizes, and by using the auxiliary spacer it is possible to match with the press cushion pin hole size of many press manufacturers.
*For stainless steel products, please contact us.

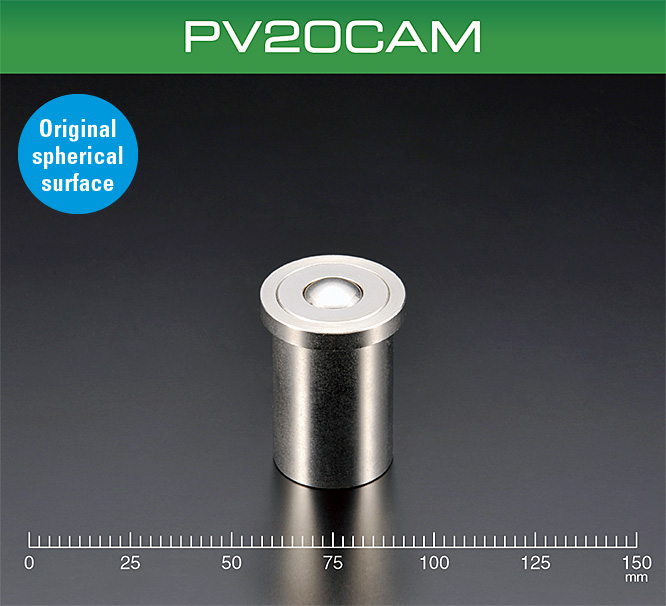

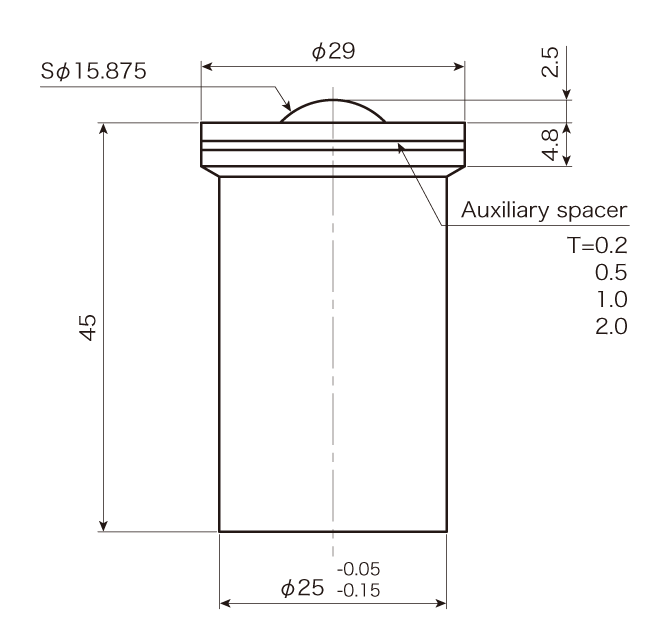

PV20CAM

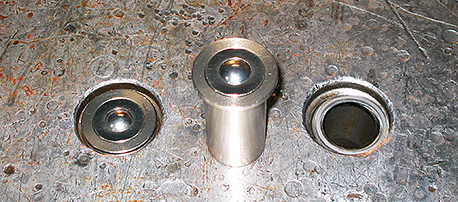

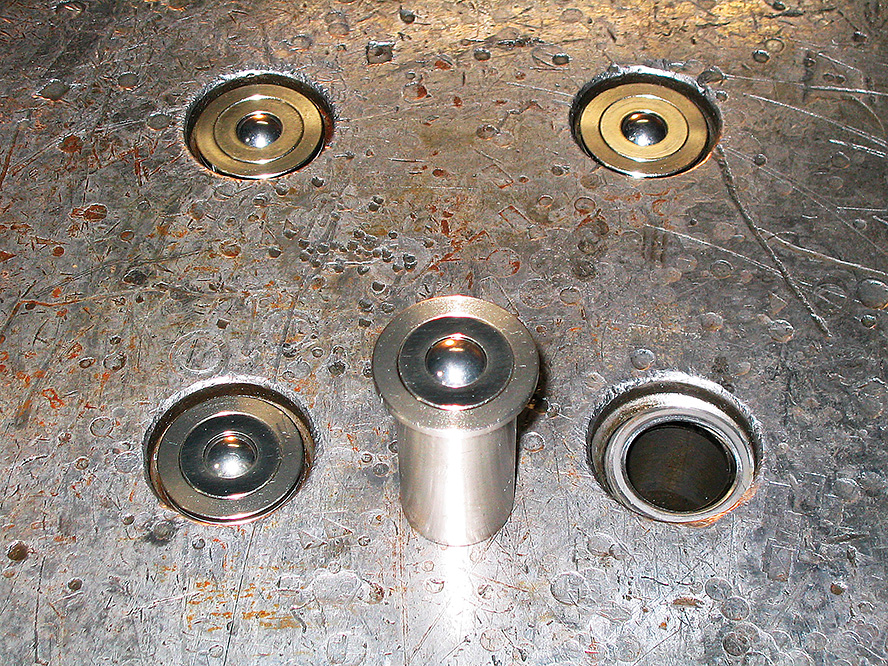

PV20CAM: Example of using

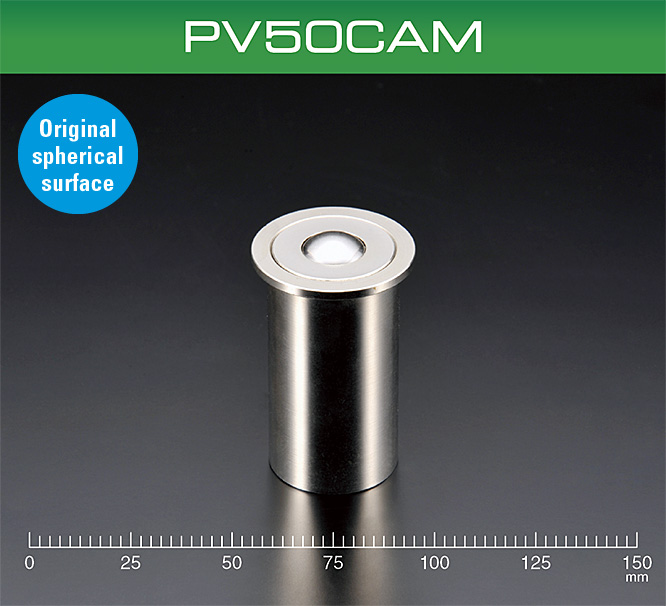

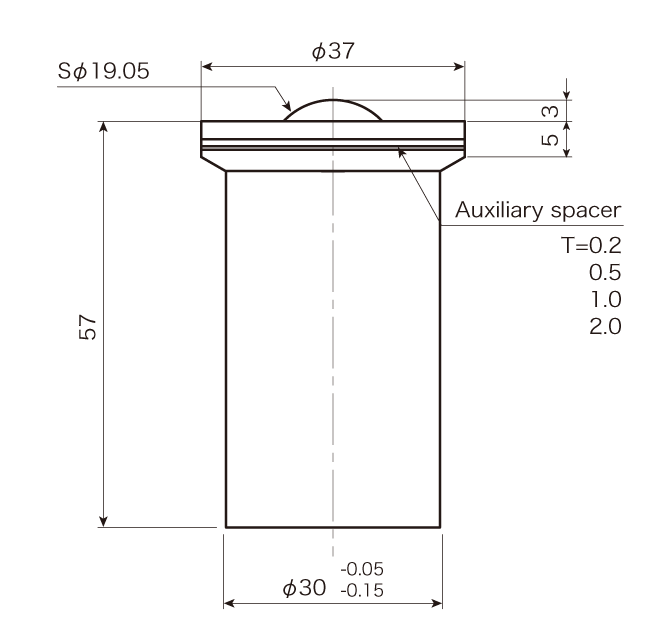

PV50CAM

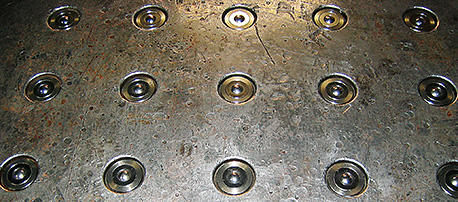

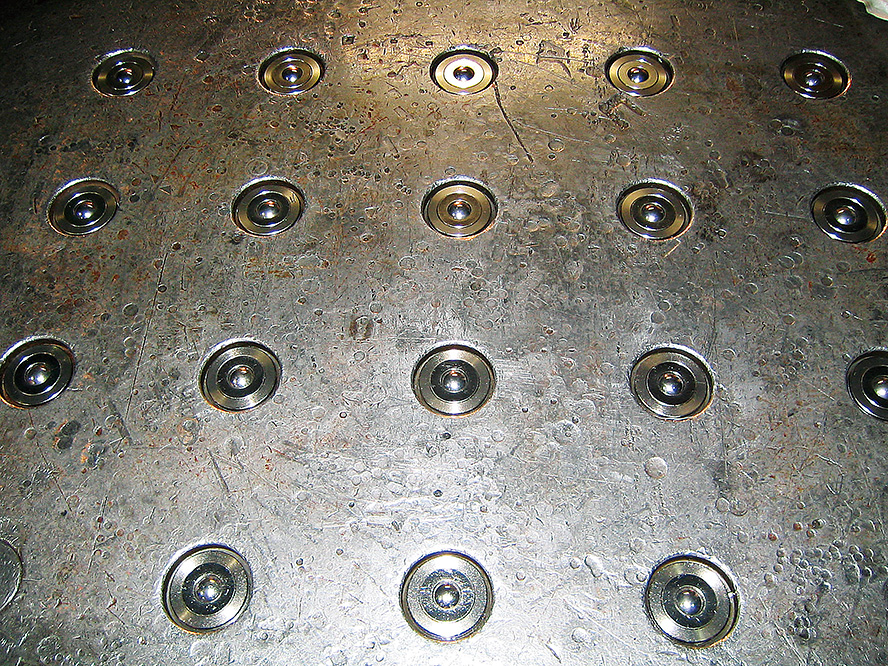

PV50CAM: Example of using
| Model | Loading Data·Quantity of Sinking | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | CAD | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5mm | 1mm | 1.5mm | 2mm | ||||||||
| PV20CAM | 212N (21.265kgf) | 228N (23.25kgf) | 244N (24.875kgf) | 260N (26.5kgf) | 125g | Upward | SUJ2 | SUJ2 | SCM415 | SUM | |
| PV50CAM | 527N (53.75kgf) | 564N (57.5kgf) | 601N (61.25kgf) | 683N (65kgf) | 246g | Upward | SUJ2 | SUJ2 | SCM415 | SUM | |
Planeveyor Spring cushion and flange type
PV-BCseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
It is a spring cushion type Planeveyor of a flange mounting type.
The intenal spring of Planeveyor does not change the load, but the load changes the spring’s cushion and takes part of the weight, and it is easily and quickly mounted and positioned for jigs, mold exchange. Free motion control and liberalization of heavy load transport can be achieved.
*For stainless steel products, please contact us.

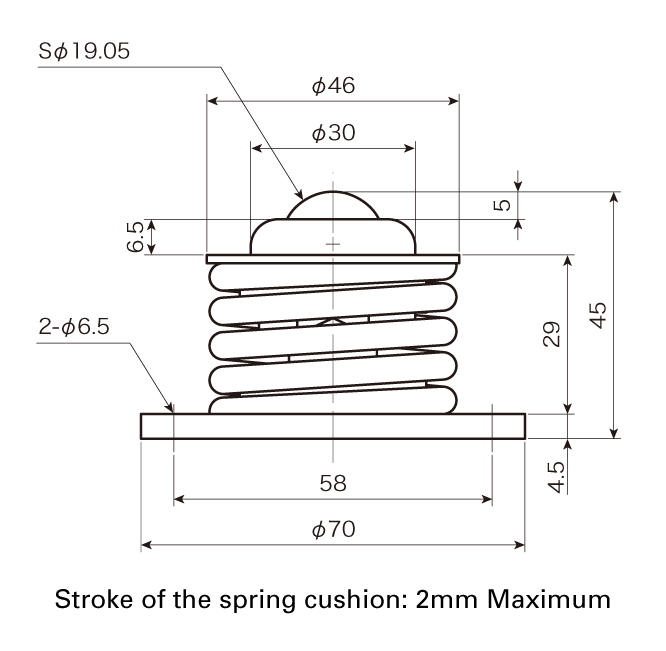

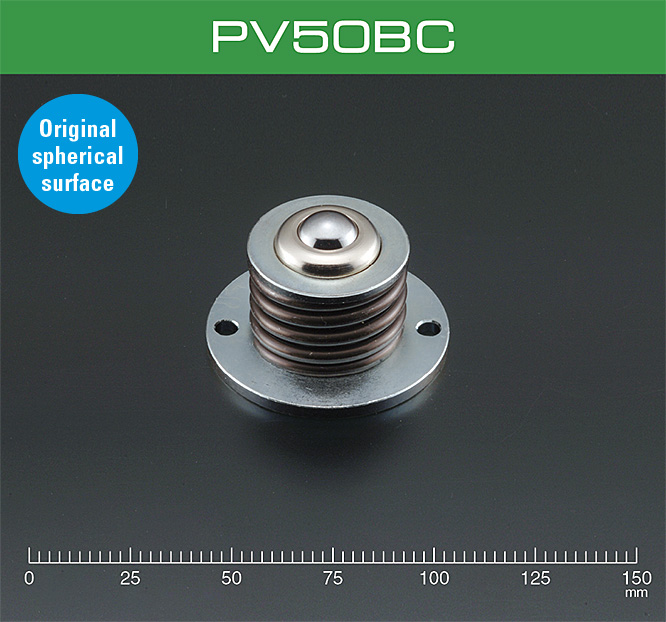

PV50BC

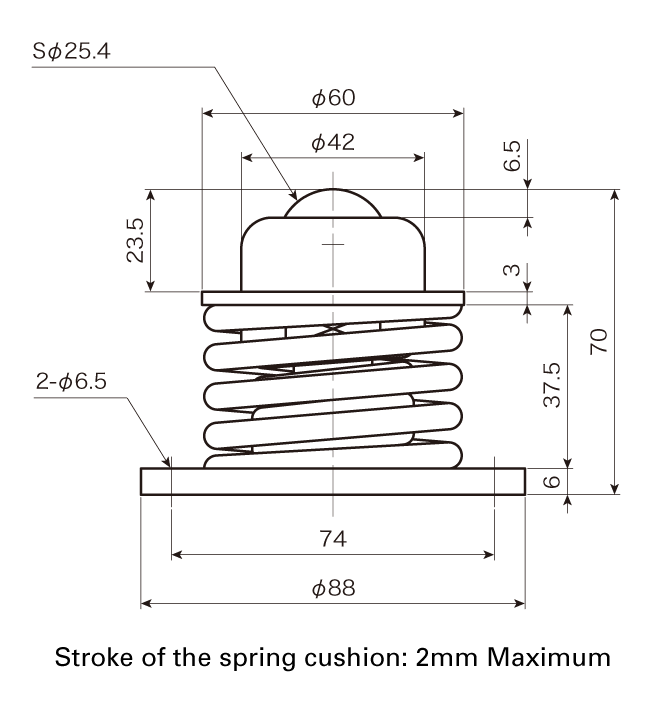

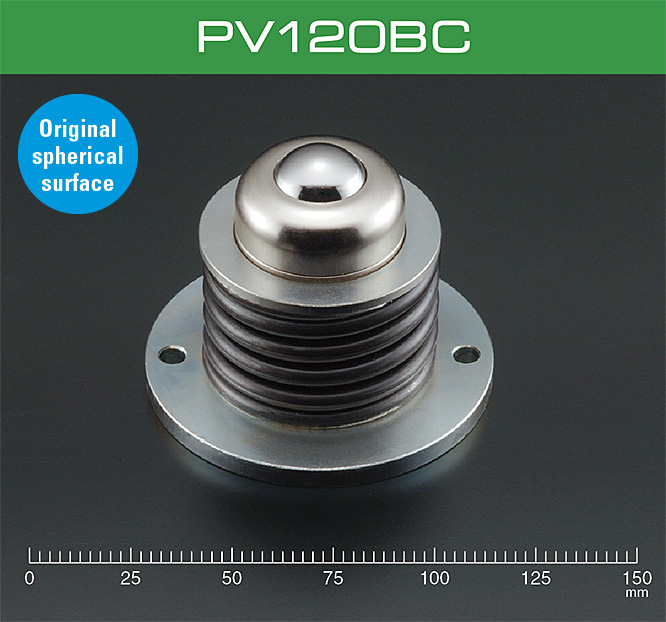

PV120BC
| Model | Setting Pressure Weight | Maximum Pressure Weight | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | CAD |
|---|---|---|---|---|---|---|---|---|---|
| PV50BC | 490N (50kgf) | 548N (56kgf) | 405g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM | |
| PV120BC | 1,176N (120kgf) | 1,372N (140kgf) | 940g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM | |
