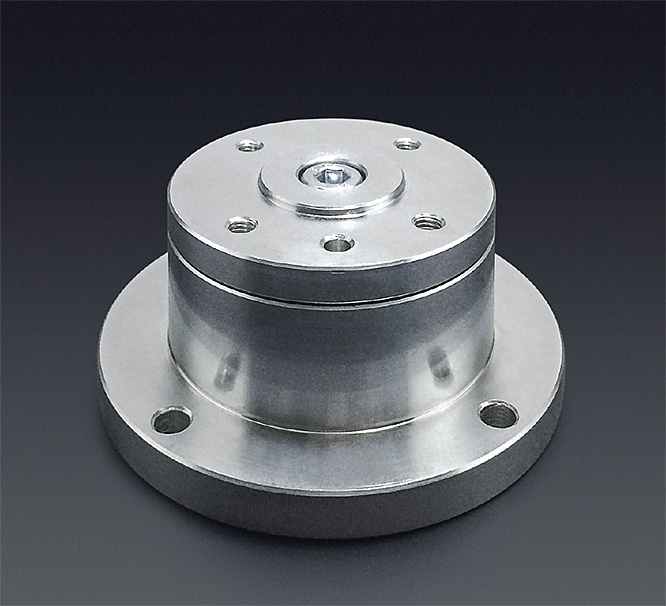

Free Guide Unit
FGUseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
FGU

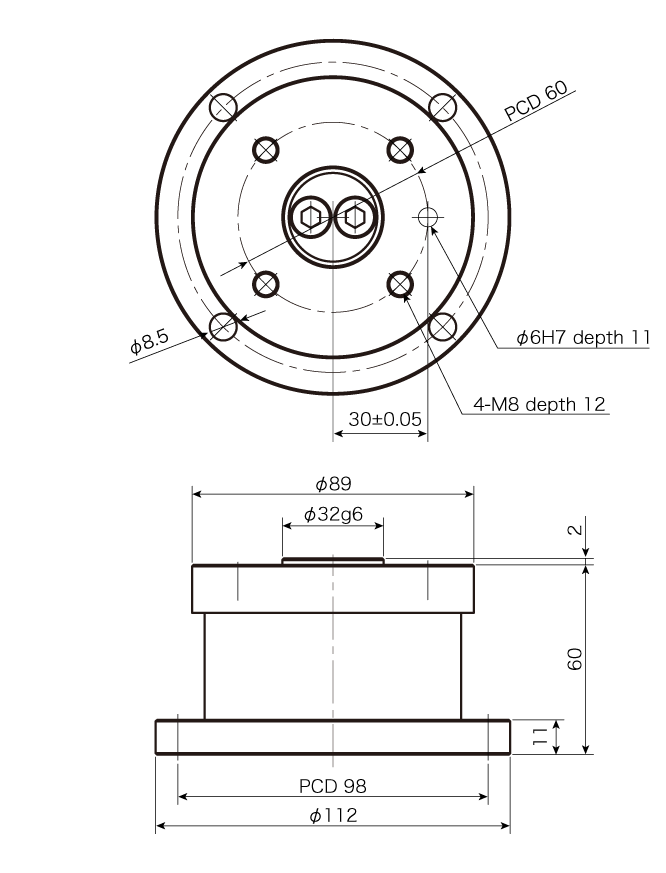

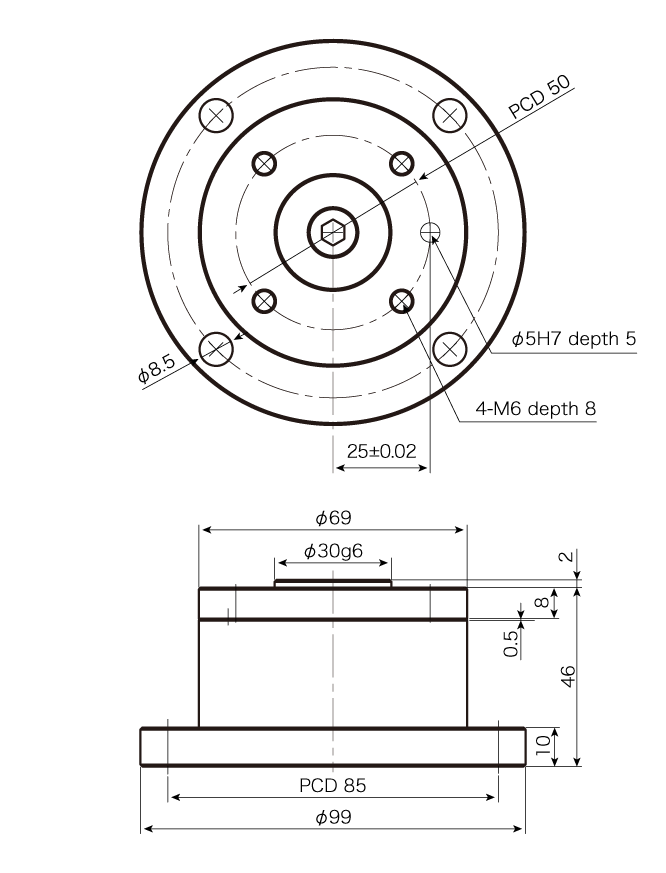

| Model | FGU-D-2N | FGU-S-2N | ||
|---|---|---|---|---|
| Top Plate Stroke | X·Y | ±2mm | ±2mm | |
| θ | At the top plate center: ±6.4° | At 2 mm stroke: ±4.8° | - | |
| Starting Resistance | X,Y direction |
Less than 80N | Less than 100N (Applied weight at setting pressure.) |
|
| Repeat Accuracy | X,Y direction | ±0.05mm | ||
| Vertical Stroke | Setting Pressure Weight*1 | 282N | ||
| Seating Pressure Weight*2 | 400N | 480N | ||
| Pressurization Center of Gravity Range*3 | Within Ø 30 mm from the center | Within Ø 45 mm from the center | ||
| Press Fit Tool Load Capacity*4 | 10kg | 5kg | ||
| Use Direction | Upward·Downward | Sideways | ||
| Temperature Range | 0 - 60°C | |||
| Weight | 1,450g | 3,300g | ||
| Download CAD | ||||
*1: The Load of the top plate begins to shrink in the vertical direction.
*2: The load of the top plate is seated on the main body.
*3: Center of gravity ranges during pressurization. Please use FGU so that the center of gravity of the pressurized material is within this range.
*4: Maximum value of the total weight of the press fitting tool and work pieces (excluding FGU body).
- Depending on the magnetic force, it may not be suitable for the usage environment.
- Please use the operating area of​ the top plate below the horizontal stroke and rotation angle value with caution. It may cause damage.
- We recommend using this product without lubrication.
- The unit described in the catalog is an example of products. In addition, we will propose available products according to your usage.
About Free Guide Unit

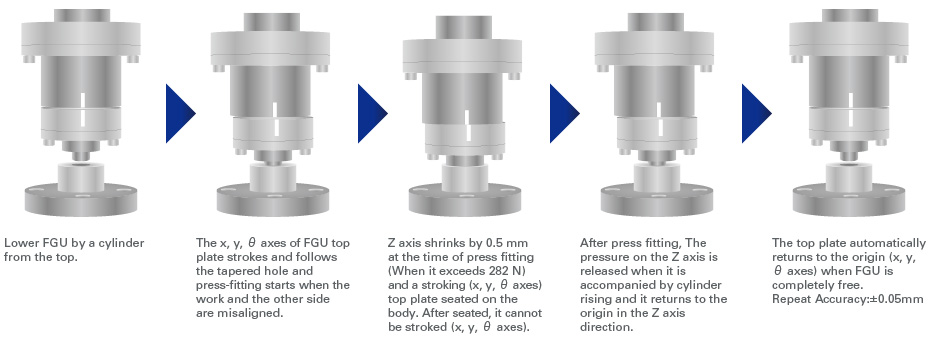

Free Guide Unit is a special unit that automatically corrects the position error in the press-fitting process of parts.

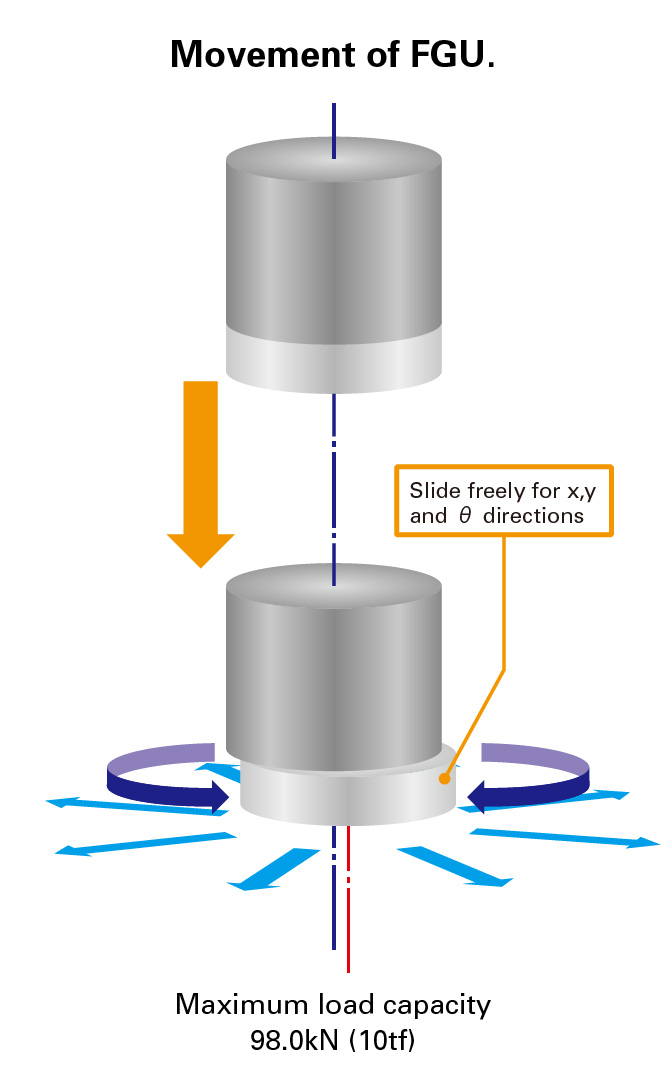

It corresponds to a pressing force of up to 10 tons, eliminating centering problems in press-fitting processes of shafts, bearings, bushings etc. with hydraulic servo press and not only.
*FGU unit with integral load cell can also be manufactured to scan all the resuls, passed or failed.
