NEWS

Special Type / New Product Information

Dec 26, 2016

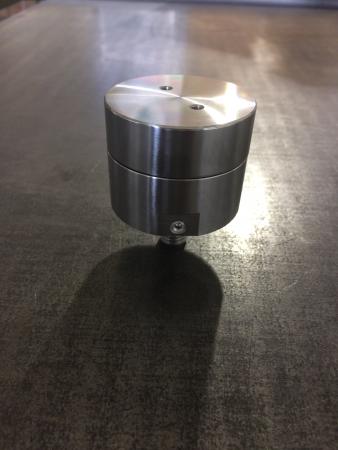

Fine control device/ FCD-50WRC-1T

It is a fine control device FCD-50WRC-1T.

Compared to the FCD standard type, it is thin type, and it is a type with increased recommended use load.



Recommended load capacity: 50kgf

Horizontal stroke: ±1mm

Mounting direction: Upward downward dual use

Lock mechanism: Included

Center lock force: 73.6kgf

Center lock holding force: 14.7kgf

The top plate return mechanism: Included

The top plate rotation: Included

 At original position: ±2.3°

 At 1 mm stroke: 0°

Dec 19, 2016

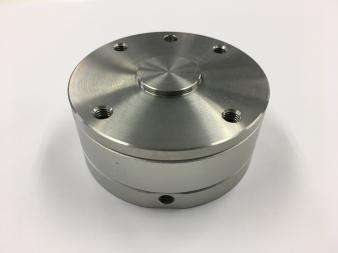

Fine control device FCD-10-2T

It is a fine control device FCD-10-2T.

It is SUS body specification rustproof type.



Recommended load capacity: 10kgf

Horizontal stroke: ±2mm

The top plate center return mechanism: Not Included

The top plate center lock mechanism: Not Included

The top plate rotation: Included

 In original position: Less than ±3.3°

 At 2 mm stroke: 0°



Oct 27, 2016

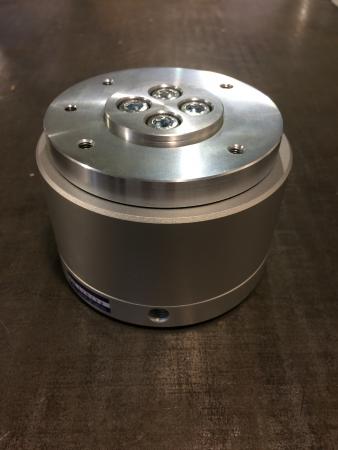

Centering unit PVXM50BR10

It is the centering unit PVXM50BR10.

Bolt type Unit with lock mechanism on centering unit.



Load capacity: 50kgf

Horizontal stroke: ±10mm

The top plate lock mechanism: Included

The top plate lock force: 36.5kgf

The top plate lock holding force: 7.3kgf

The top plate repeat accuracy: ±0.1mm

Weight: 507g

Oct 26, 2016

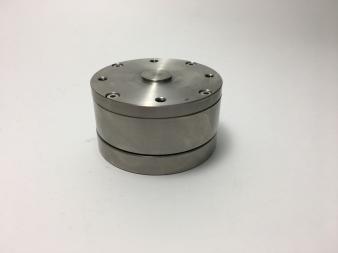

Fine control device FCD-10RC-1.5

It is a fine control device FCD - 10RC - 1.5.



Recommended Load Capacity: 10kgf

Horizontal stroke: ±1.5mm

The top plate return mechanism: Spring

The top plate lock mechanism: Included

The top plate lock holding force: 34.2kgf

The top plate rotation: Not Included

Oct 26, 2016

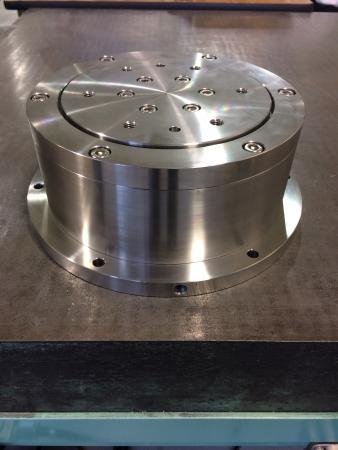

Hanging type centering unit PVXM20B250R2

 It is a hanging type centering unit PVXM 20B250R2.

It is a heavy duty unit which enabled maximum hanging load of 500 kgf.



Recommended Load Capacity: 250kgf

Maximum hanging load: 500kgf

Maximum compression direction load: 210kgf

The top plate lock mechanism: Included

The top plate lock holding force: 62kgf (Horizontal direction)

Weight: 26.5kg

*Cannot be used horizontally



Aug 23, 2016

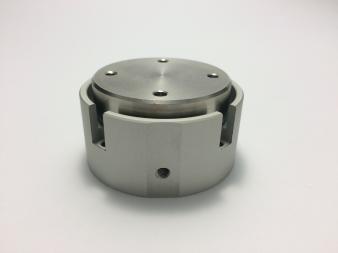

Centering unit PVXM50R-5

It is the centering unit PVXM50R-5.



Recommended Load Capacity: 50kgf

Horizontal stroke: 2mm (One swing)

Top plate locking force: 41kgf

The top plate lock holding force: 8.2kgf

Apr 18, 2016

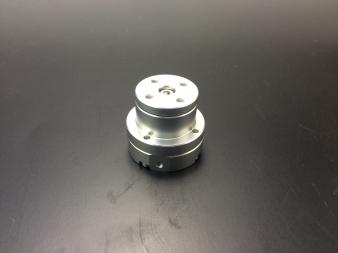

Fine control device FCD-05RC-1T

It is a fine control device FCD05RC - 1T.

A unit that enabled small size and light weight. (Body diameter Ø 32, weight 60 g)



Recommended Load Capacity: 500gf (Applicable up to 5 kgf)

Horizontal stroke: 1mm (One swing)

The top board center lock mechanism: Included

The top plate lock holding force: 12kgf

The top plate rotation angle: 0° - ±7.2°

Jan 28, 2016

Fine control device FCD-05RNC-2T

It is a fine control device FCD-05RNC-2T.
A unit has both mechanisms the top plate lock and the top plate center lock.


Recommended Load Capacity: 500g
Horizontal stroke: 2mm (One swing)
The top plate lock mechanism: Included
The top plate lock holding force: 20kgf (Limited to the x and y directions)
The top board center lock mechanism: Included
The top plate center lock holding force: 65.3kgf (Limited to the x and y directions)
Rotation angle

 : At the top plate origin ±4.1°
 : At 2 mm stroke 0°
